| Test result | ||||||
| NO. | Testing item | Unit | Standard | Testing result | Conclusion | |
| 1 | Static Bending Strength | Mpa | ≥11.0 | 15.1 | Pass | |
| 2 | Elastic Modulus | Mpa | ≥1600 | 3290 | Pass | |
| 3 | Internal Bonding Strength | Mpa | ≥0.35 | 0.47 | Pass | |
| 4 | Surface Bonding Strength | Mpa | ≥0.60 | 1.75 | Pass | |
| 5 | 2 Hours Thickness Swelling Rate | % | ≤8.0 | 0.3 | Pass | |
| 6 | Moisture Content | % | 3.0 ~ 13.0 | 5.9 | Pass | |
| 7 | Density | g/cm3 | 0.60 ~ 0.90 | 0.69 | Pass | |
| 8 | Screw Holding Capability | Surface | N | ≥900 | 1250 | Pass |
| Edge | ≥600 | 930 | Pass | |||
| 9 | Surface resistance to hot and cold | — | No cracks, bubbling, discoloration, wrinkles, etc. | No cracks, no bubbling, no discoloration, no wrinkles | Pass | |
| 10 | Surface Scratch Resistance | — | ≥1.5N | 1.5N No more than 90% of continuous scratches on the surface | Pass | |
| 11 | Surface Wearable | Wear values | mg/100r | ≤80 | 35 | Pass |
| Surface condition | — | After grinding for 100 revolutions, more than 50% of the pattern should be retained. | 75% of the pattern is retained after 100 revolutions of grinding | Pass | ||
| 12 | Surface dry heat resistance | — | Reach level 4 or above | level 4 | Pass | |
| 13 | Surface Contamination Corrosion Resistance | — | Reach level 5 or above | level 5 | Pass | |
| 14 | Surface Cracking Resistance | — | Reach level 4 or above | level 5 | Pass | |
| 15 | Surface Water Vapor Resistance | — | Reach level 4 or above | level 4 | Pass | |
| 16 | Colour Fastness | Level | Blue wool cloth level 6, | Greater than 4 levels of grayscale card | Pass | |
| Reach grayscale card level 4 | ||||||
- 6 MAJOR FEATURES

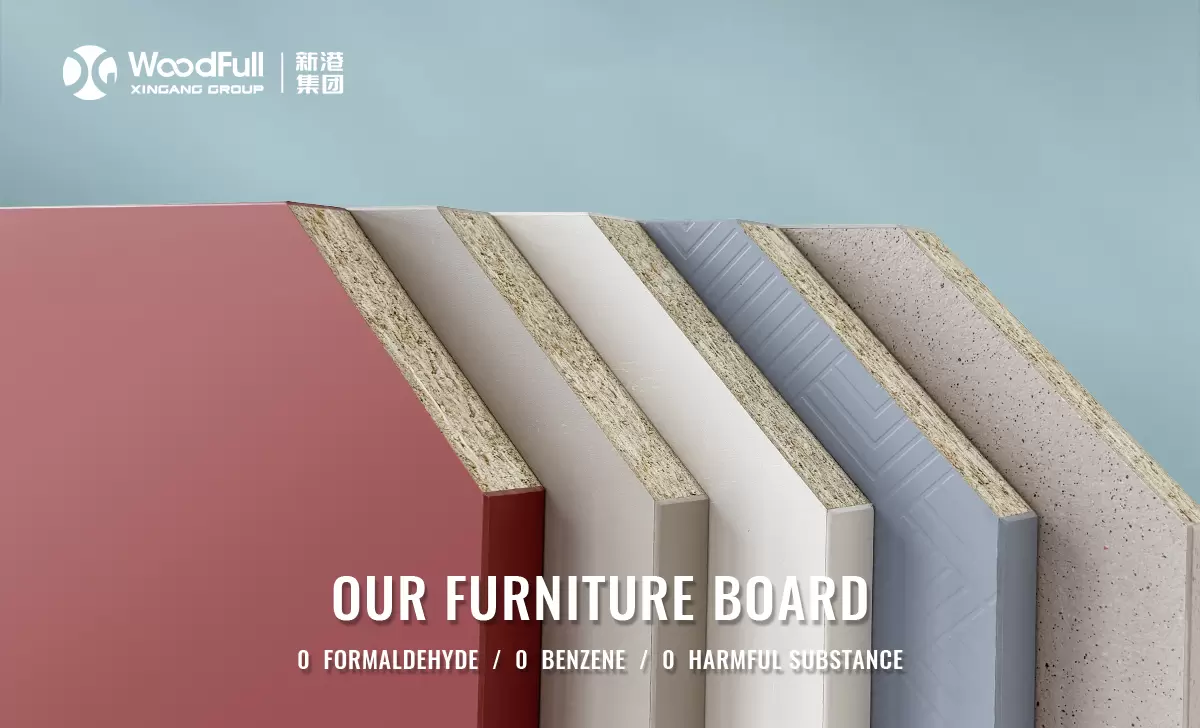

· Healthy and Environmentally Friendly, with no Occupational Hazards, Requiring no Special Protective Measures
| Xingang Bio-mimetic Adhesive Developed by Academician Li Jian's team 0 formaldehyde, 0 benzene, and 0 Harmful Substance |
| China's First Near-Zero odor Health Product certification Effectively solved the problem of furniture environmental pollution, and realized the effective control of the main health risk factors. |
| 24h+ National Environmental Standards for Pregnant and Infant Level Rely on excellent quality and environmental performance, formaldehyde release ≤0.020mg/m³,environmental requirements than ENF level new national standard 20%. |
| Antibacterial and Antiviral Efficacy Suitable for children's room, kitchen, bathroom and other key living areas. Primary Antibacterial Effect: it has an antibacterial rate of up to 99.99% against Escherichia coli, Staphylococcus aureus, Klebsiella pneumoniae, and Pseudomonas aeruginosa, achieving a first-class strong antibacterial effect. Primary Antiviral Effect:Achieving a first-class antiviral effect against Influenza A (H3N2) virus, Enterovirus 7l, and Murine Norovirus. |
| HENF Environmental Grade for Heating Season The Formaldehyde emission was as low as 0.017mg/m³ |
| High-Strength Water-Resistant Bonding Method Achieving a P6 waterproof rating for furniture boards, and easily handles the damp and humid weather conditions. |
| Door-Wall-Cabinet Intergration Xingang door-wall-cabinet system helps one-stop high-quality home. |
| The Same Color with Different Boards A color, with collision and combination of different boards,exploring the the infinite possibilities of home decoration aesthetics. |
| Perfect Coverage of Three Types of Boards Xingang Bio-mimetic Adhesive Glue,perfect for "Particleboard, MDF, Plywood" three types of boards,which fully meets the diversified market needs. |
The Xingang Bio-mimetic Technology Series Panels, paired with Xingang Bio-mimetic Green Adhesives, perfectly cover the three mainstream panel products in the market: particleboard, MDF, and plywood, fully meeting the diverse needs of the market.
|
|
|

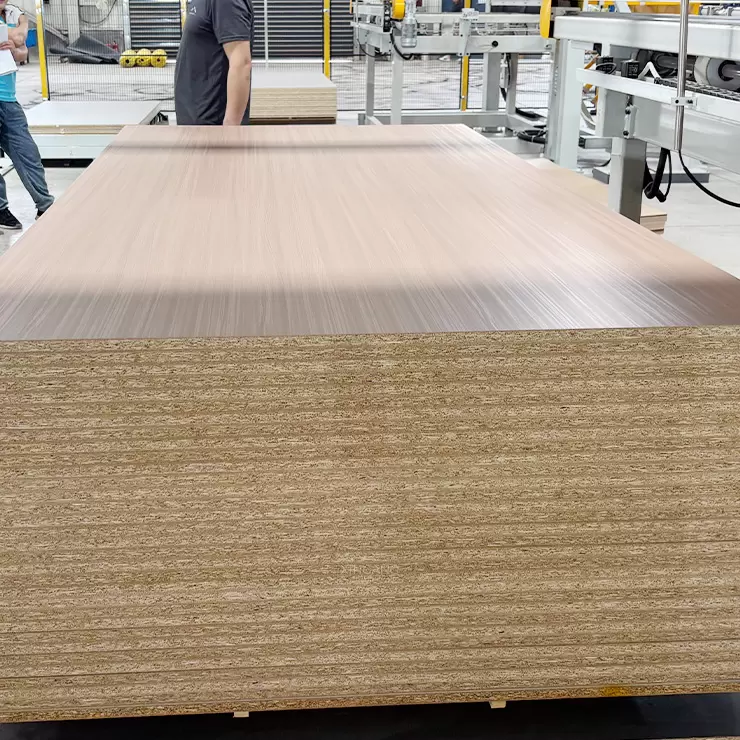

| Particle Board | Plywood | MDF |
| Serial Number | Model |
1 | C201 | |
2 | C202 | |
3 | C203 | |
4 | M101 | |
5 | M104 | |
6 | G410 | |
7 | GB701 | |
8 | GS502 | |
9 | GS503 | |
10 | GS504 |
| Serial Number | Model |
1 | C201 | |
2 | C202 | |
3 | C204 | |
4 | M102 | |
5 | M103 | |
6 | M105 | |
7 | G401 | |
8 | GB701 | |
9 | GS502 |
| Serial Number | Model |
1 | C201 | |
2 | C202 | |
3 | C203 | |
4 | C204 | |
5 | C205 | |
6 | C206 | |
7 | CM301 | |
8 | CM302 | |
9 | CM303 | |
10 | CM304 | |
11 | CM305 | |
12 | CM306 |
| Serial Number | Model |
1 | C202 | |
2 | C203 | |
3 | C205 | |
4 | M105 | |
5 | M106 | |
6 | M107 | |
7 | M108 | |
8 | GB701 | |
9 | GS502 | |
10 | GS505 |
| Serial Number | Model |
1 | C203 | |
2 | C204 | |
3 | CM305 | |
4 | CM306 | |
5 | M109 | |
6 | M110 | |
7 | G402 | |
8 | G403 | |
9 | GS503 | |
10 | GS504 |
